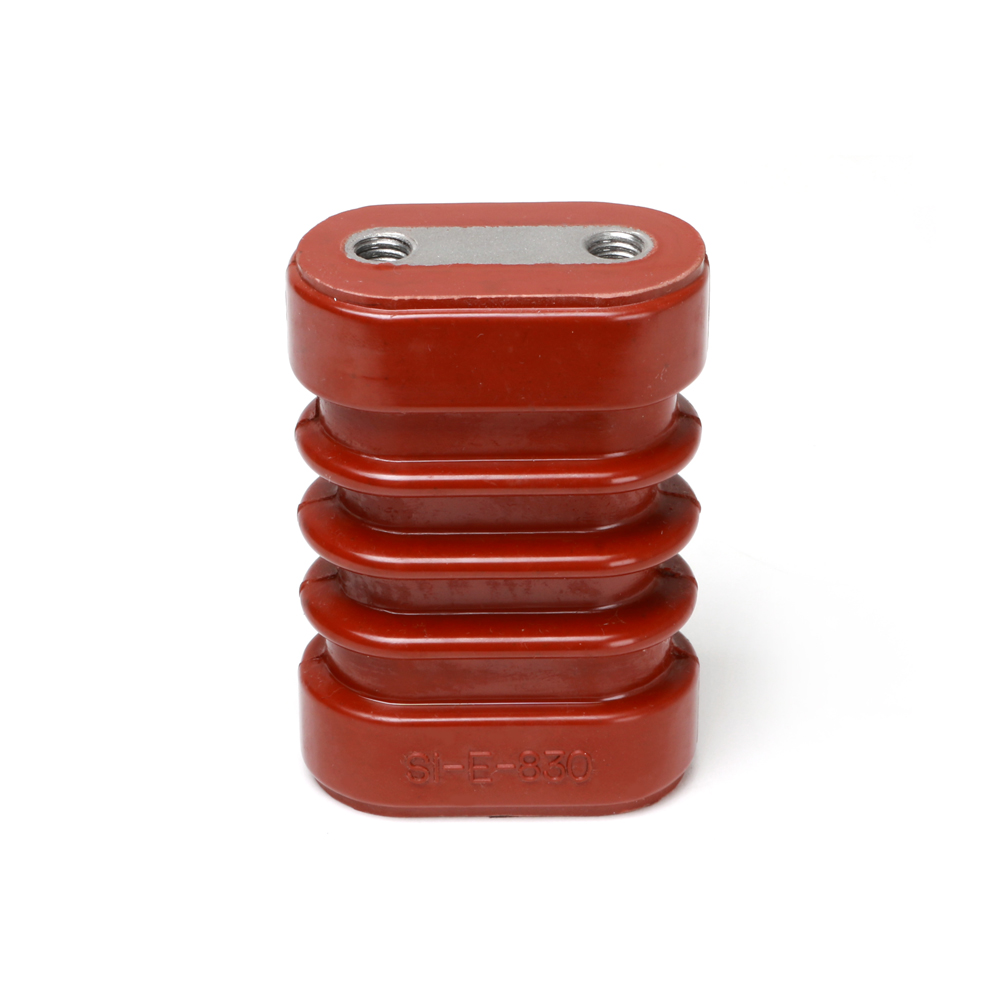

| Product | EPOXY RESIN INSULATORS | |
| Model No. | SIE-830 | |
| Rated Voltage | 7.2KV | |
| Material | Body | EPOXY POWDER |
| Insert | AL | |
| Power Frequency Withstand Voltage (1 minute kV) | 22 |
| Impulse Withstand Voltage (kV) | 60 |
| Power Frequency Dry Flashover Voltage (kV) | 50 |
| Impulse Dry Flashover Voltage (kV) | 80 |
| Bending Load (kgf) | 60 |
| Tensile Load (kgf) | 700 |
| Creepage Distance (m/m) | 91 |
| Proper Torque (kgf-cm) | 250 |
| Weight (kg) | 0.195 |
