EPOXY RESIN INSULATOR

EPOXY RESIN INSULATOR

Epoxy resin insulator

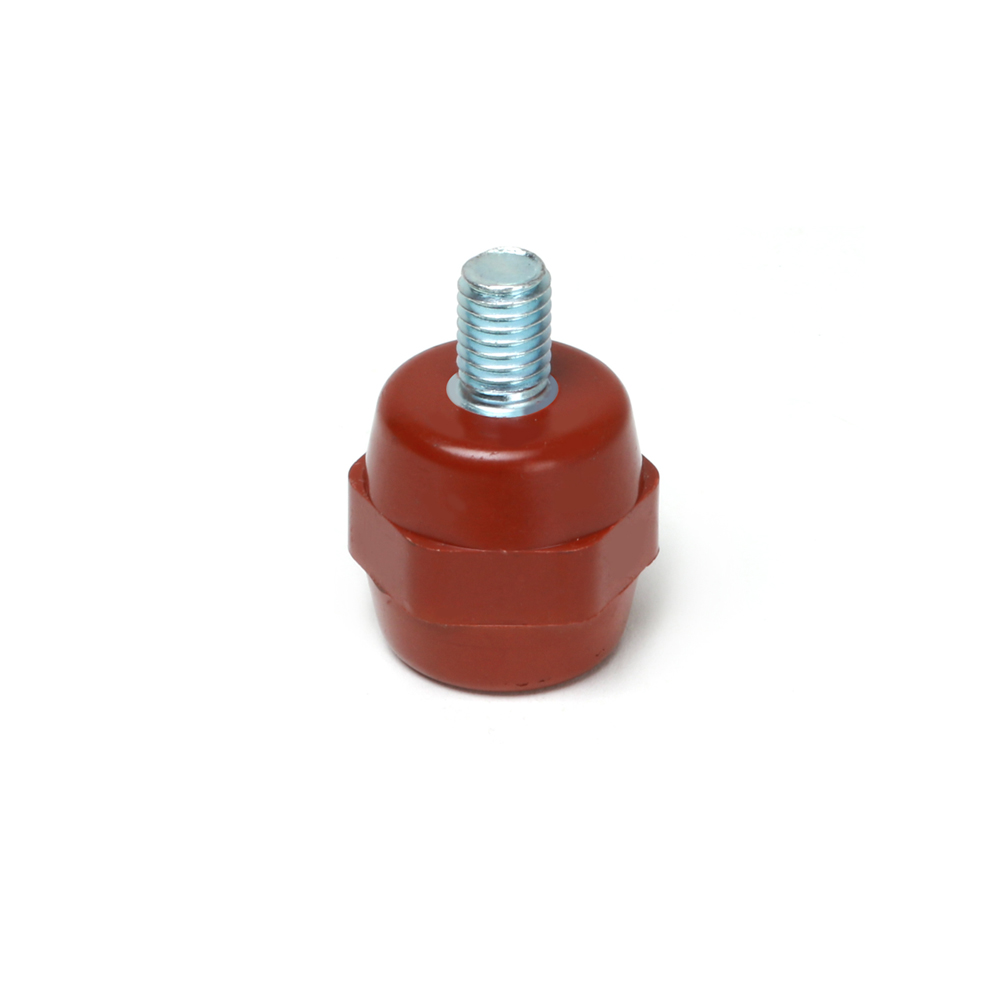

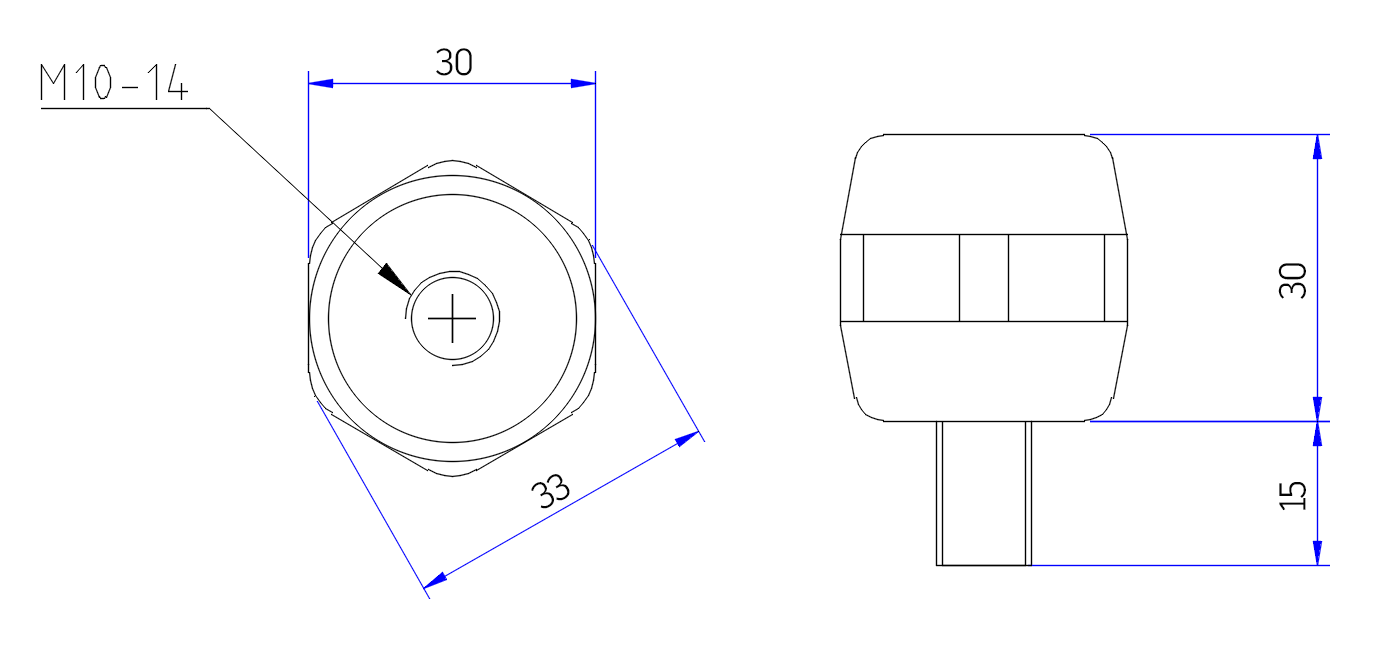

Low VoltageSIE-330 (30Ⅹ30)㎜ M10

Epoxy Resin Insulator

ProductEPOXY RESIN INSULATORS
Model No.SIE-330
Rated Voltage600V
MaterialBodyEPOXY POWDER
InsertAL
BoltSTEEL


Power Frequency Withstand Voltage (1 minute kV)2
Bending Load (kgf)60
Creepage Distance (m/m)33
Proper Torque (kgf-cm)200
Weight (kg)0.055


Low Voltage (size)

Model No.W
(m/m)		H
(m/m)		Bolt sizeType
SIE-1901919M5Bolt
SIE-2622525M6
SIE-2502525M6Bolt
SIE-2532530M6
SIE-3383030M8Bolt
SIE-3303030M10Bolt
SIE-3353035M8
SIE-3503535M10Bolt
SIE-4354035M10Bolt
SIE-2642540M6
SIE-2742540M8
SIE-3043040M8
SIE-4044040M10
SIE-4054050M10
SIE-4064060M10


SIE-338 (30Ⅹ30)㎜ M8 SIE-335 (30Ⅹ35)㎜ M8
