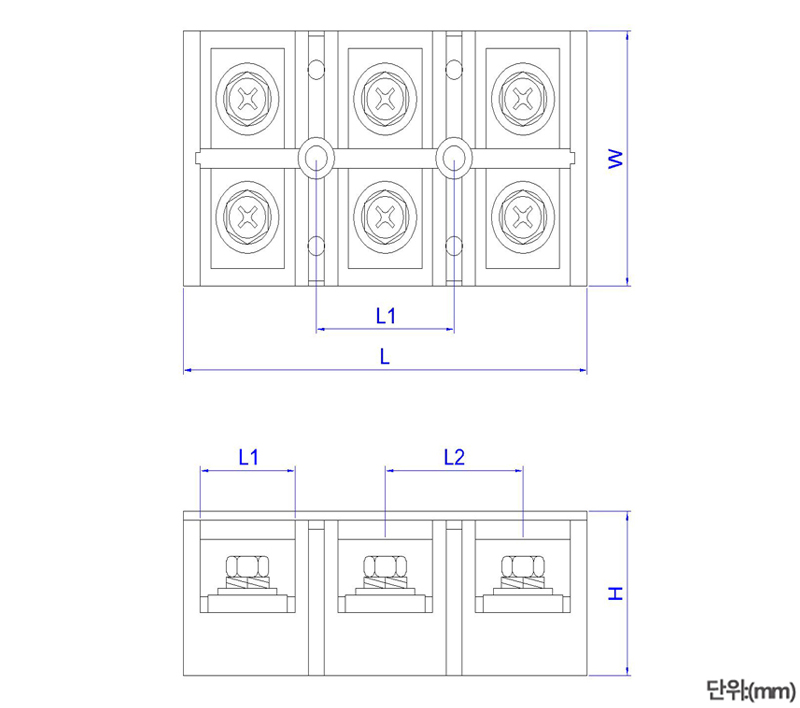

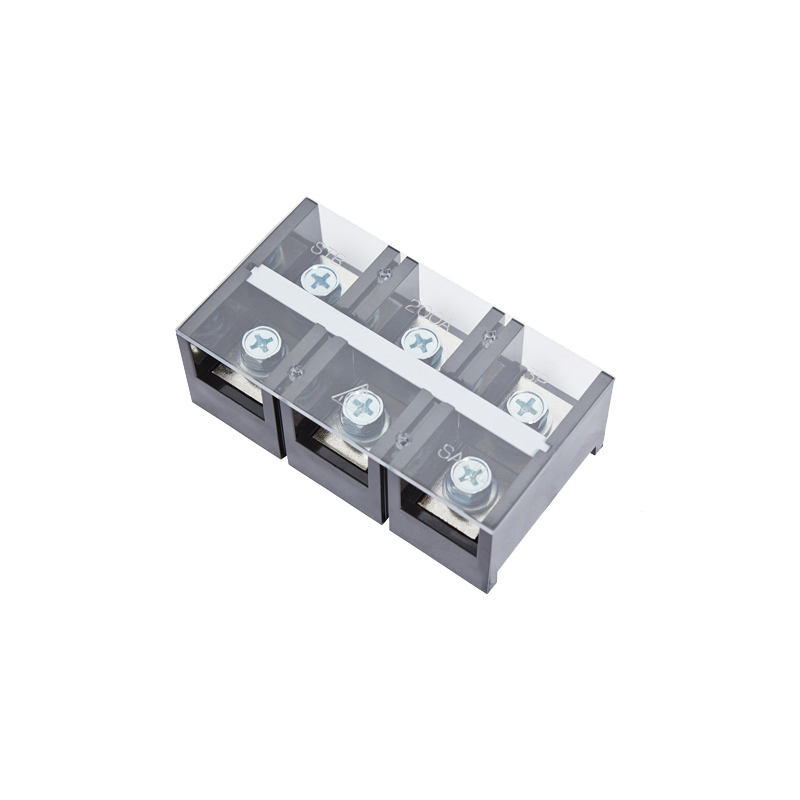

| TYPE | L | L1 | L2 | L3 | W | H | Terminal Screw
|
| 200A 3P | 132 | 45 | 31 | 45 | 73 | 47 | M 9 X 15 |
※ Stainless steel bolts for terminal blocks are also available for order
Model Name
| STB 200A 3P |
Rated Insulation Voltage
| Max 600VAC |
Rated Current
| 250VAC 200A |
Insulation Resistance
| Above 100MΩ(DC 500V MΩ Insulation Resistance Measurement) |
Withstanding Voltage
| 2500VAC 50/60Hz 1min |
Temperature Rise
| Max 45°C (Ambient Temperature Limit 45°C) |
Applicable Wires
| Above 95 ㎟ |
Proper Tightening Torque
| 10 N.m ※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this. |
Wire Range
| #10~#3/0 |
Terminal Screw
| M9 |
Mounting Hole
| 7.2 |
Connection Terminal
| e | Min 20.5 ㎜ |  |
| f | Min Φ 10.1 |
| w | Max 28.5 ㎜ |
l | Min 55.5 ㎜ |
Part materials
Body
| Polycarbonate resin |
Terminal
| Brass |
Bolt
| SWCH-10A, STS(Option) |
Cover
| Polycarbonate resin |
※ Stainless steel bolts for terminal blocks are also available for order
10 N.m
※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this.
Part materials
