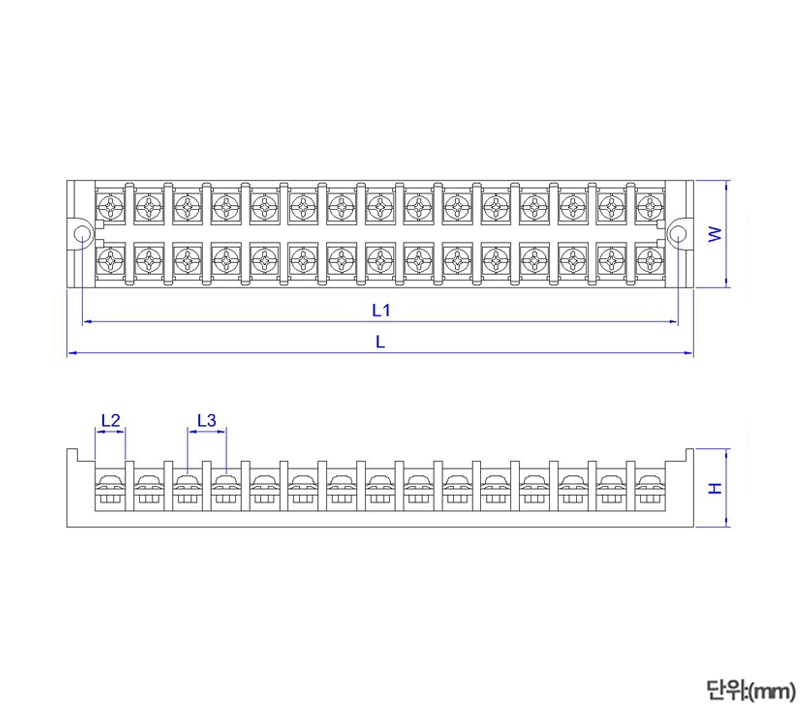

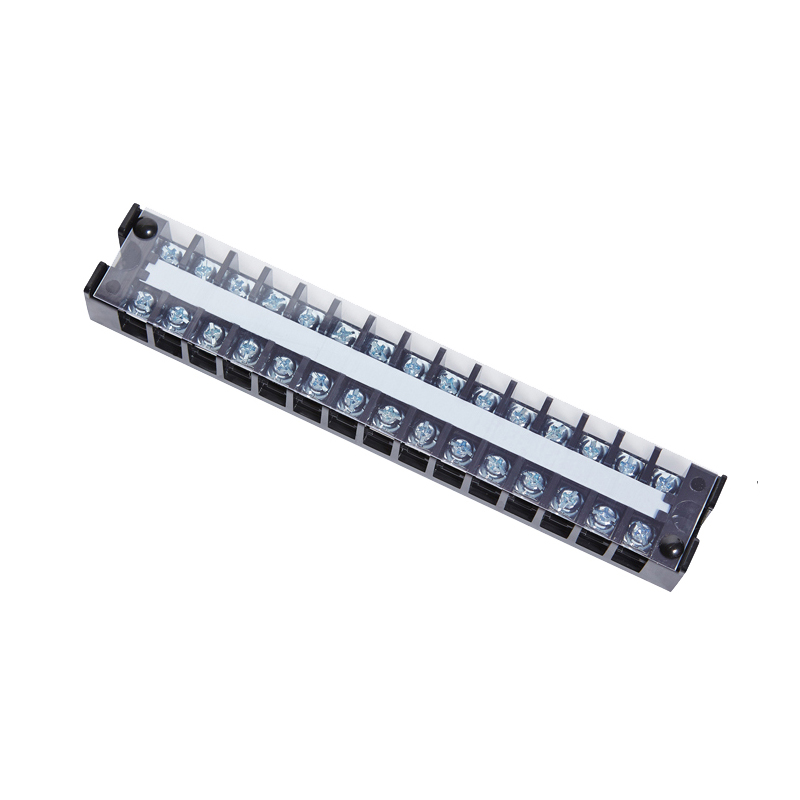

| TYPE | L | L1 | L2 | L3 | W | H | Terminal Screw
|
| 20A 15P | 176 | 167.5 | 8.5 | 11 | 30 | 22 | M 4 X 8 |
※ Stainless steel bolts for terminal blocks are also available for order
Model Name
| STB 20A 15P |
Rated Insulation Voltage
| Max 600VAC |
Rated Current
| 250VAC 20A |
Insulation Resistance
| Above 100MΩ(DC 500V MΩ Insulation Resistance Measurement) |
Withstanding Voltage
| 2500VAC 50/60Hz 1min |
Temperature Rise
| Max 45°C (Ambient Temperature Limit 45°C) |
Applicable Wires
| Above 2.5 ㎟ |
Proper Tightening Torque
| 1.2 N.m ※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this. |
Wire Range
| #22~#10 |
Terminal Screw
| M4 |
Mounting Hole
| 4.5 |
Connection Terminal
| e | Min 10.0 ㎜ |  |
| f | Min Φ 4.1 |
| w | Max 8.3 ㎜ |
l | Min 21.5 ㎜ |
Part materials
Body
| Polycarbonate resin |
Terminal
| Brass |
Bolt
| SWCH-10A, STS(Option) |
Cover
| PVC |
※ Stainless steel bolts for terminal blocks are also available for order
1.2 N.m
※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this.
Part materials
