| TYPE | L | L1 | L2 | L3 | L4 | L5 | W | W2 | H | Terminal Screw
|
| 600A 4P | 259 | 131 | 47 | 65.5 | 51 | 45 | 97 | 138 | 62 | M 10 X 20 |
※ Stainless steel bolts for terminal blocks are also available for order
Model Name

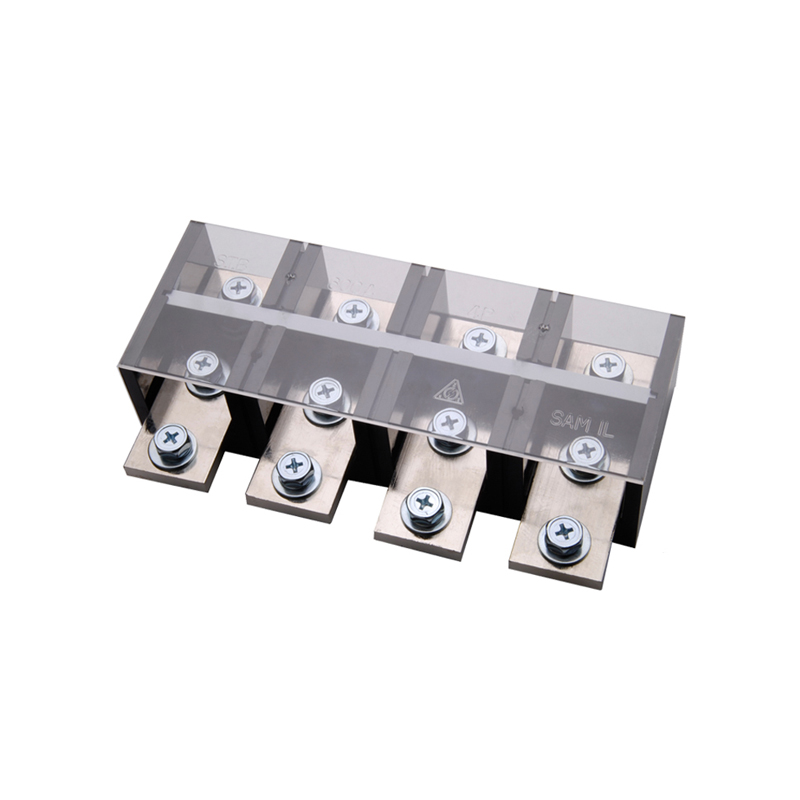

| STB2H-600A-4P
|
Rated Insulation Voltage
| Max 600VAC |
Rated Current
| 250VAC 600A |
Insulation Resistance
| Above 100MΩ(DC 500V MΩ Insulation Resistance Measurement) |
Withstanding Voltage
| 2500VAC 50/60Hz 1min |
Temperature Rise
| Max 45°C (Ambient Temperature Limit 45°C) |
Applicable Wires
| Above 300 ㎟ |
Proper Tightening Torque
| 10 N.m ※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this. |
Wire Range
| #10 ~ 10000 kcmil |
Terminal Screw
| M10 |
Mounting Hole
| 9.2 |
Connection Terminal
| e | Min 35.5 ㎜ |  |
| f | Min Φ 12.5 |
| w | Max 52.0 ㎜ |
l | Min 88.0 ㎜ |
Part materials
Body
| Polycarbonate resin |
Terminal
| Brass |
Bolt
| SWCH-10A, STS(Option) |
Cover
| Polycarbonate resin
|
※ Stainless steel bolts for terminal blocks are also available for order
10 N.m
※Excessive torque may cause wear on terminal screw threads, and we do not take responsibility for any defects resulting from this.
Part materials
